This page covers web only, including mobile web using Playwright emulators.
To perform a visual comparison, use toHaveScreenshot.
toHaveScreenshot(name, options)
  • name — string used to identify and store the baseline image
  • options — optional object controlling comparison behavior, see Key options below

​
Examples

Assert a canvas element:
await expect(
  page.locator(`[class*="chart-canvas"]`)
).toHaveScreenshot(
  `revenue-chart`,
  {
    maxDiffPixelRatio: 0.01,
    timeout: 60 * 1000,
  }
);
Assert a specific UI component:
await expect(
  page.locator(`[class*="nav-header"]`)
).toHaveScreenshot(
  `nav-header`,
  {
    maxDiffPixelRatio: 0.01,
    timeout: 60 * 1000,
  }
);
Assert a full page:
await expect(page).toHaveScreenshot(
  `checkout-page`,
  {
    fullPage: true,
    maxDiffPixelRatio: 0.01,
    timeout: 60 * 1000,
  }
);
Omitting a name and maxDiffPixelRatio makes the baseline hard to identify and causes minor rendering differences to fail the test.
// Avoid
await expect(page.locator(`[class*="chart-canvas"]`)).toHaveScreenshot();

​
When to use

  • Your test needs to assert the content or appearance of a canvas element — canvas is not part of the DOM and cannot be targeted with locators
  • You want to catch layout or style regressions after a redesign or component change
  • No selector or functional assertion can verify the visual state you need
  • Your app has pixel-perfect design requirements, and you want automated enforcement
Avoid toHaveScreenshot when the area contains timestamps, live data, animations, or other frequently-changing content — these cause false failures. Use a functional assertion instead.

​
Key options

OptionDescriptionRecommended
maxDiffPixelRatioFraction of pixels allowed to differ (0–1)0.01
maxDiffPixelsAbsolute pixel count allowed to differSituational
fullPageCapture the full scrollable pagefalse
timeoutMax milliseconds to wait for a match60000

​
Notes

  • On the first run, no baseline exists yet — the screenshot is saved automatically as the expected image. See the instructions below to review it before relying on the test.

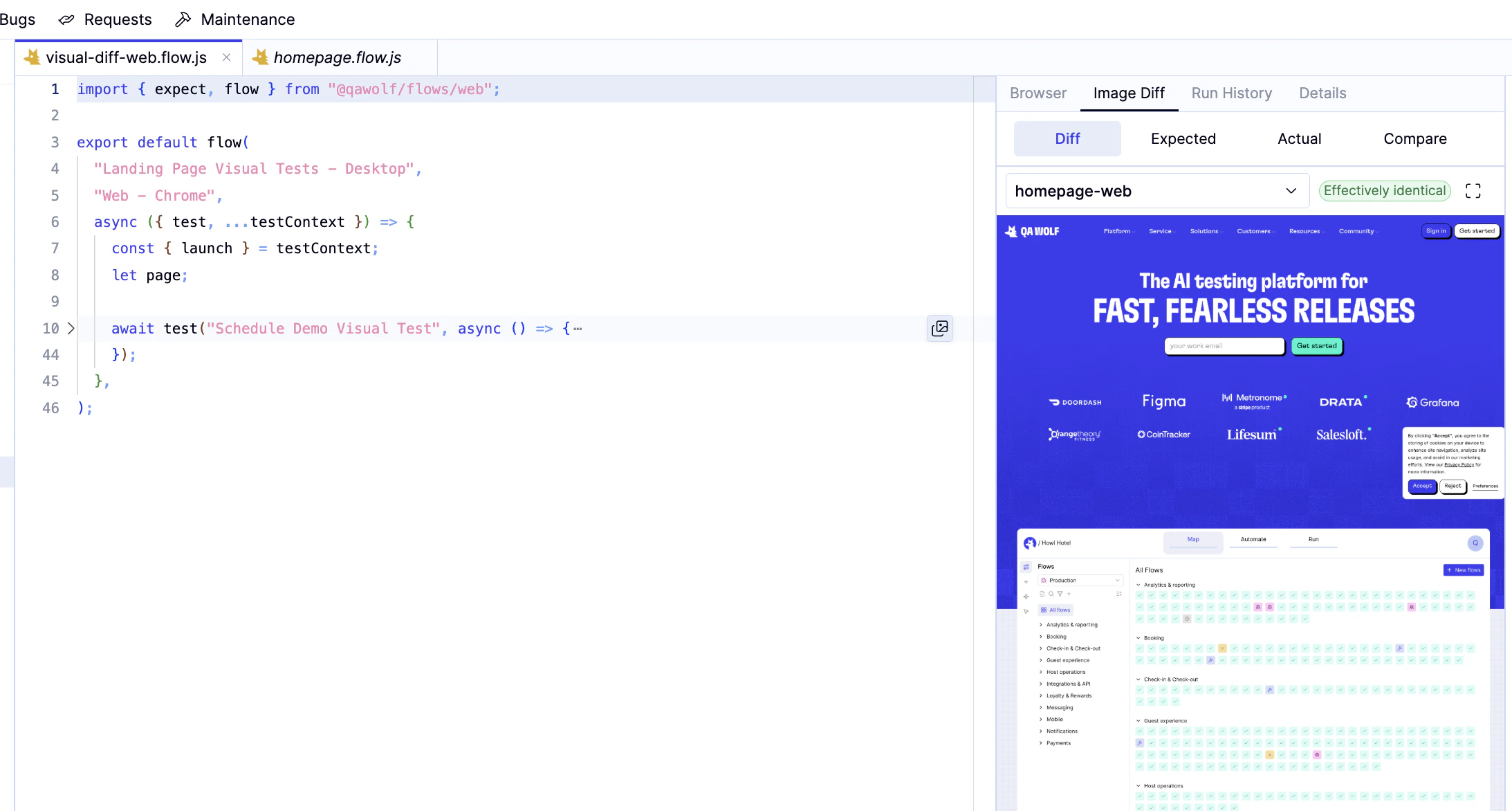

  • To inspect a visual diff result in the editor, collapse the test block — an icon will appear in the right gutter of that line. Click it to open the Image Diff panel, where you can view the Diff, Expected, Actual, and Compare tabs for each named snapshot.
  • On subsequent runs, a new screenshot is compared pixel-by-pixel to the baseline. If the difference exceeds the threshold, the test fails, and a diff image is saved showing exactly which pixels changed.
  • If a UI change is intentional, promote the new screenshot as the updated baseline in the QA Wolf editor. Future runs will compare against the new image.
    Visual Diffing 1

​
Full sample test

import { expect, flow } from "@qawolf/flows/web";

export default flow(
  "Landing Page Visual Tests - Desktop",
  "Web - Chrome",
  async ({ test, ...testContext }) => {
    const { launch } = testContext;
    let page;

    await test("Schedule Demo Visual Test", async () => {
      //--------------------------------
      // Arrange:
      //--------------------------------

      //! Opening the home page of QA Wolf

      //!! launch the context and browser
      const { context, browser } = await launch();

      //!! create a new page in the browser
      page = await context.newPage();

      //!! navigate to the "https://www.qawolf.com/"
      await page.goto("https://www.qawolf.com/");

      //!! wait for loadstate to be "domcontentloaded"
      await page.waitForLoadState("domcontentloaded");

      //--------------------------------
      // Assert:
      //--------------------------------

      //! Check that certain elements on the home page match the expected screenshots

      //!! expect the screen to match homepage-web"
      await expect(page).toHaveScreenshot(
        `homepage-web`,
        {
          fullPage: true,
          maxDiffPixelRatio: 0.01,
          timeout: 60 * 1000,
        }
      );
    });
  },
);
